Mini Excavator

Takeuchi TB135 Mini Ex Tracks

Fits track size: 300x52.5Wx86

Choose your tread pattern. OEM-grade, continuous steel cord, free freight.

24-Month Warranty Free Freight Same-Day Shipping Fleet Discounts

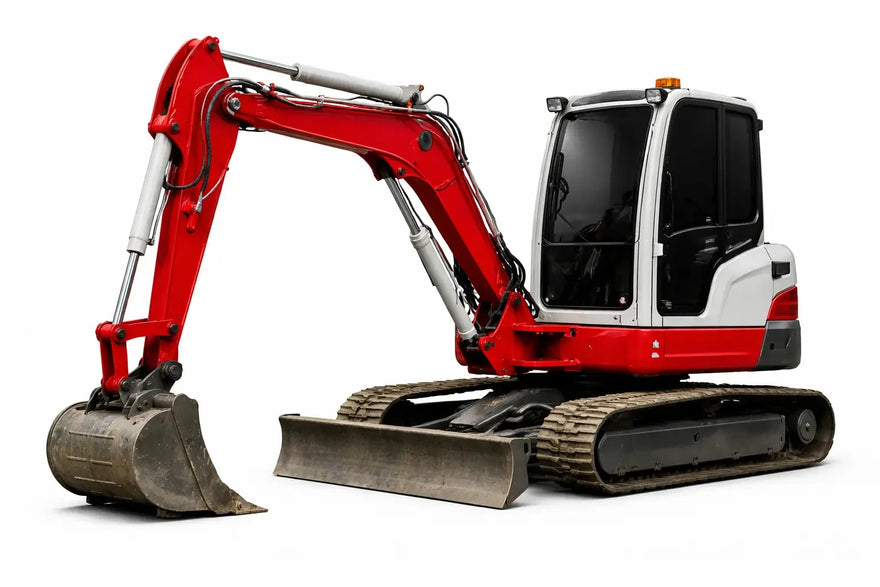

Takeuchi TB135 rubber tracks and parts
Machine Performance
  • Operating Weight7831 lbs
  • Horsepower27.0 HP
  • Track Size300x52.5Wx86
Hydraulics & Lift
  • Standard Flow19.8 GPM
  • Hydraulic Pressure3000 PSI
OEM Reference Parts
  • Sprocket P/NSP04710-00600
  • Front Idler P/NFI03714-00000
  • Bottom Roller P/NTR04313-11100

Takeuchi TB135 Mini Ex Tracks

Pick your track size (OEM fit: 300x52.5Wx86), then choose a tread pattern. OEM-grade continuous steel cord · free freight.

Takeuchi TB135 Mini Ex · 350x52.5x86

MX Pattern

Heavy-Duty Rubber Track

MX Pattern

Track Size: 350x52.5x86

$1,049.00$1,311.00Save $262.00

View Track

Takeuchi TB135 Mini Ex · 300x52.5Wx86

MX Pattern

Heavy-Duty Rubber Track

MX Pattern

Track Size: 300x52.5Wx86

$997.00$1,123.00Save $126.00

View Track
Shop all Takeuchi TB135 rubber tracks →

Takeuchi TB135 Mini Ex Undercarriage

OEM-cross-referenced sprockets, idlers & rollers for the Takeuchi TB135. Drop-in fit for 300x52.5Wx86.

Takeuchi TB135 Mini Ex Sprockets

Part number depends on serial break — confirm your S/N before ordering.

Heavy-Duty Sprocket

Heavy-Duty Sprocket

Part #: SP04710-00600

$229.00$259.00

View Part

Takeuchi TB135 Mini Ex Front Idlers

Part number depends on serial break — confirm your S/N before ordering.

Heavy-Duty Front Idler

Heavy-Duty Front Idler

Part #: FI03714-00000

$449.00$509.00

View Part

Takeuchi TB135 Mini Ex Rollers

Part number depends on serial break — confirm your S/N before ordering.

Heavy-Duty Track Roller

Heavy-Duty Track Roller

Part #: CR03712-00100

$119.00$139.00

View Part
Heavy-Duty Track Roller

Heavy-Duty Track Roller

Part #: TR03313-06100

$159.00$179.00

View Part
Heavy-Duty Track Roller

Heavy-Duty Track Roller

Part #: TR04313-11100

$179.00$209.00

View Part

Takeuchi TB135 Mini Ex Attachments

Excavator Pin-On mount for the Takeuchi TB135. Buckets, grapples, forks, brush cutters & more — selected for this machine.

Backhoe Heavy Duty Bucket

Attachment

Backhoe Heavy Duty Bucket

$495.00

View Attachment
Shop all attachments →

Takeuchi TB135 FAQs

Common questions about Takeuchi TB135 tracks, undercarriage parts, and attachments.

What size rubber tracks fit the Takeuchi TB135?
The Takeuchi TB135 commonly uses track size 300x52.5Wx86. Verify against your machine's existing track sidewall marking or OEM manual before ordering.
Are Heavy Iron tracks guaranteed to fit my Takeuchi TB135?
Yes. Every rubber track order requires you to confirm make and model at checkout. We cross-reference OEM specs and only ship when fitment is verified. Wrong-fit claims are covered under our fitment guarantee.
How fast do Takeuchi TB135 tracks ship?
Orders placed before 12PM CT ship the same business day. Rubber tracks ship free via LTL freight to the contiguous United States (48 states).
What tread patterns are available for the Takeuchi TB135?
We stock 2+ tread options for the Takeuchi TB135 — including C-Block, multi-bar, zig-zag, and directional patterns. See the tracks section above for live pricing.
Do you sell undercarriage parts for the Takeuchi TB135?
Yes — sprockets, idlers, rollers, and related steel undercarriage components are listed on this page when in stock. Need an OEM part number matched? Call (850) 816-7898 with your serial number.

Ready to outfit your Takeuchi TB135?

Need a part not listed? We source OEM-cross undercarriage and attachments for every major brand. Free freight and fleet pricing.
